TRIG ADS-B Out Light Sport / Experimental Bundle
$3,149.00
Description
TRIG ADS-B Out Light Sport / Experimental Bundle
Included in this bundle: TT22 Mode S ADS-B Transponder, TN72 WAAS GPS Receiver, TA70 GPS Antenna
- The TT22 system is Trig’s smallest and lightest Mode S general aviation transponder. It can fit into the smallest of aircraft, yet is fully certified and compliant with all the transponder requirements.
- The TN72 GPS Receiver is an affordable and practical position source for Trig transponders. By adding GPS information to the transponder output, the aircraft’s precise GNSS location is transmitted to other ADS-B equipped aircraft—improving electronic visibility and safety.
- The TA70 GPS antenna is a fully certified TSO-C190 antenna—compatible and proven with Trig transponders—and meets the FAA ADS-B requirements.
The Trig 2020 ADS-B Bundle (02016-00) provides a fully compatible ADS-B Out solution that meets the requirements of FAR 91.227 for light-sport and experimental aircraft.
The TT22 system is Trig’s smallest and lightest Mode S general aviation transponder. It can fit into the smallest of aircraft, yet is fully certified and compliant with all the transponder requirements.
The TN72 GPS Receiver is an affordable and practical position source for Trig transponders. By adding GPS information to the transponder output, the aircraft’s precise GNSS location is transmitted to other ADS-B equipped aircraft—improving electronic visibility and safety.
The TA70 GPS antenna is a fully certified TSO-C190 antenna—compatible and proven with Trig transponders—and meets the FAA ADS-B requirements.
Related products
Garmin GDL 50R Remote-mount ADS-B “In” Receiver, for Use with Certified G3X System
$911.00
Physical
- Unit dimensions, WxHxD: 6.1" x 1.6" x 5.0" (15.49 x 4.06 x 12.7 cm)
- Weight: 0.78 lbs (0.35 kg)
Performance
- Operating temperature: -20°C to +60°C (-4°F to 140°F)
- Operating altitude: To 55,000 ft
- Nominal operating velocity range: 0 – 800 kts (411 m/s)
- Power input: 10 to 32 VDC, 3.5 W max.
Connections
- 15-pin standard D-sub power and data connector
- ADS-B BNC antenna port
- GPS BNC antenna port
- Wireless Connext™ (Bluetooth®)

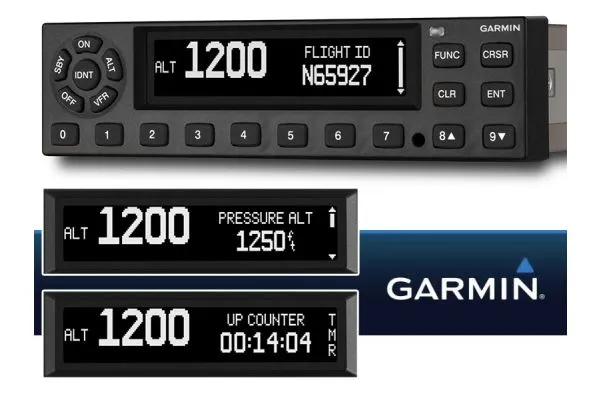

Garmin GTX 335 1090-MHz ADS-B “Out” Transponder
$3,252.00
Physical & Performance
- Physical dimensions (unit, rack, connectors); for panel mounts, depth is measured from face of instrument panel: 1.68” x 6.30” x 10.07” (42 x 160 x 256 mm)
- Display type: Digital
- Weight (unit, rack, connectors) 2.8/2.9 lbs (1.27/1.32 kg)
- Voltage range: 14/28 VDC (15/17 W Max)
- Transmit power: 200 W minimum
- Temperature: -40° C to +70° C
- Operating altitude: To 55,000 ft (16,800 m)
- Cooling input: Not required
- Environmental compliance (TSO Approved): DO-160G
- Software compliance (TSO Approved): DO-178 Levels B, C, D
- Hardware compliance (TSO Approved): DO-254 Level C; TSO compliance (Approved): "TSO-C88b (w/opt. alt. encoder); TSO-C112e (Class 1, Level 2els); TSO-C166b (Class B1S)"
- Mount type: Panel
- Transponder type: Mode A/C, S and ES
- Squawk code selection: Push-button
- Traffic Information Services (TIS) alerts compatible: Yes
- Solid state transmitter (more efficient, longer life) Yes
- Aural alerts: Yes
- Total Air Temperature (TAT): Yes
- Pressure altitude readout: Yes
- Altitude monitor function: Yes
- Density altitude readout: Yes
- Built-in timers: Yes
- Automatic ALT/GND mode: Yes
- 1090 MHz ADS-B Out: Yes
- Built in GPS/WAAS receiver: Optional
- Displays on G500/G600, GTN 650/750, GNS 430W/530W, and others: Yes
- Pressure altitude encoder module (mounts to connector backplate): Optional
- Night vision compatible: Optional
Garmin GTX 335 1090-MHz ADS-B “Out” Transponder with GPS Combo Kit
$3,058.00
Physical & Performance
- Physical dimensions (unit, rack, connectors); for panel mounts, depth is measured from face of instrument panel: 1.68” x 6.30” x 10.07” (42 x 160 x 256 mm)
- Display type: Digital
- Weight (unit, rack, connectors) 2.8/2.9 lbs (1.27/1.32 kg)
- Voltage range: 14/28 VDC (15/17 W Max)
- Transmit power: 200 W minimum
- Temperature: -40° C to +70° C
- Operating altitude: To 55,000 ft (16,800 m)
- Cooling input: Not required
- Environmental compliance (TSO Approved): DO-160G
- Software compliance (TSO Approved): DO-178 Levels B, C, D
- Hardware compliance (TSO Approved): DO-254 Level C; TSO compliance (Approved): "TSO-C88b (w/opt. alt. encoder); TSO-C112e (Class 1, Level 2els); TSO-C166b (Class B1S)"
- Mount type: Panel
- Transponder type: Mode A/C, S and ES
- Squawk code selection: Push-button
- Traffic Information Services (TIS) alerts compatible: Yes
- Solid state transmitter (more efficient, longer life) Yes
- Aural alerts: Yes
- Total Air Temperature (TAT): Yes
- Pressure altitude readout: Yes
- Altitude monitor function: Yes
- Density altitude readout: Yes
- Built-in timers: Yes
- Automatic ALT/GND mode: Yes
- 1090 MHz ADS-B Out: Yes
- Built in GPS/WAAS receiver: Yes
- Displays on G500/G600, GTN 650/750, GNS 430W/530W, and others: Yes
- Pressure altitude encoder module (mounts to connector backplate): Optional
- Night vision compatible: Optional

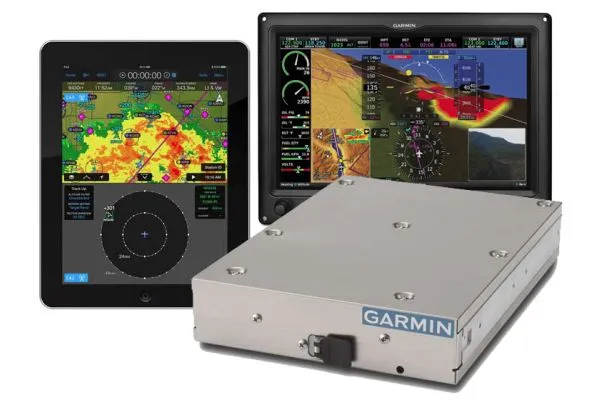

Garmin GTX 35R Remote-Mount Experimental ADS-B “Out” Transponder
$330.00
- Physical dimensions (unit, rack, connectors): for panel mounts, depth is measured from face of instrument panel: 1.65” x 6.30” x 9.9” (42 x 160 x 224 mm)
- Display type: N/A
- Weight (unit, rack, connectors): 2.5/2.6 lbs (1.13/1.18 kg)
- Voltage range: 14/28 VDC (15/17 W Max)
- Transmit power: 200 W minimum
- Temperature: -45° C to +70° C
- Operating altitude: To 55,000 ft (16,800 m)
- Cooling input: Not required
- Environmental compliance (TSO Approved): DO-160G
- Software compliance (TSO Approved): DO-178 Levels B, C, D
- Hardware compliance (TSO Approved): DO-254 Level C; TSO compliance (Approved); TSO-C88b (w/opt. alt. encoder); TSO-C112e (Class 1, Level 2els); TSO-C145d (Class B2); TSO-C166b (Class B1S)”
- Mount type: Remote
- Transponder type: Mode A/C, S and ES
- Squawk code selection: Remote entry
- Traffic Information Services (TIS) alerts compatible: Yes
- Solid state transmitter (more efficient, longer life): Yes
- Aural alerts: Yes
- Automatic ALT/GND mode: Yes
- 1090 MHz ADS-B Out: Yes
- Built in GPS/WAAS receiver: Optional
- Displays on G500/G600, GTN 650/750, GNS 430W/530W, and others: Yes
- Pressure altitude encoder module (mounts to connector backplate): Optional
Stratus 3 ADS-B IN Receiver
$660.00
Stratus Certified ESG Bundle, with 1090ES ADS-B Out TSO Transponder, 3i ADS-B In Rx & Universal ESG Harness
$3,542.00
Stratus ESG 1090ES ADS-B Out TSO Transponder Specs:
- Bezel: Height 1.69 in. (43 mm)
- Bezel: Width 6.38 in. (162 mm)
- Depth: 10.75 in. (273 mm) front of panel to connector backshell
- Weight: 3.29 lbs. (1.49 kg) including rack and connectors
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -55°C to 85°C
- Power Input: 9.0 to 36.0 VDC, 15 W typical
- Cooling Input: No fan required
- Environmental Compliance: DO-160G
- Software Compliance: DO-178B Level C
- Hardware Compliance: DO-254 Level C
- TSO Compliance: C112e (Level 2els, Class 1); C145d (Class Beta 1 GPS/WAAS); C166b (Class B1S)
- Display: OLED
- Transmitter Power: 310 W
TRIG TT21 Mode S & 1090ES ADS-B Out transponder, for Class 2
$2,177.00
| TT21 – Mode S for light aviation | TT22 – Mode S for high performance aircraft | |
| Type | Transponder Class 2 Mode S level 2els ADS-B Class B0 | Transponder Class 1 Mode S level 2els ADS-B Class B1S |
| Certification | ETSO C88A, C112C, C166A and TSO C88b, C112c, C166b, approved for IFR and VFR flight | |
| Compliance | ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181D | |
| Supply voltage (DC) | 9-33 V | |
| Typical Consumption (@14V) | idle: 0.15 A active: 0.28 A | idle: 0.15A active: 0.34 A |
| NominalTransmitterPower | 130 W at connector | 250 W at connector |
| Operating temperature | for the transponder -40°C to +70°C for the controller -25°C to +70°C | |
| CoolingRequirement | no fan required | |
| Weight | 440g | |
| Dimensions | controller: H 44 x W 63 x L 54 mm transponder in tray: H 48 x W 68 x L 160 mm | |
