True Airspeed Indicator, 3 1/8″ 0-180 mph/ 155 knots, TSO
$1,135.00
Description
True Airspeed Indicator, 3 1/8″ 0-180 mph/ 155 knots, TSO
United Instruments True Airspeed Indicator measures differential pressure developed between the pitot tube and static pressure system. Indicated airspeed is displayed on the outer scale in MPH and on the inner scale in Knots. Manually rotatable outer dial is set to correlate outside air temperature with altitude to provide true airspeed reading in dial cutout. Setting knob is at 5 o’clock position. 3-1/8″ instrument round mount with 1/8-27 ANPT rear pitot and static ports. United Airspeed indicators are available in a variety of ranges up to 300 mph. Specify range when ordering. Meets FAA TSO C2b.
Related products
2″ Lighted Digital Electric Horizon Gyro, 9-32 volt, TSO
$2,332.00
ELECTRICAL REQUIREMENTS
- Operating voltage: 9 to 32VDC
- Current draw: 0.20 A Max
- Circuit breaker: 2 amps
- Length: 1.22 in. max.
- Width: 3.37 in. max
- Height: 3.37 in. max
- Weight: 6.75 oz
- Length: 1.22 in. max.
- Width: 2.75 in. max
- Height: 2.4 in. max
- Weight: 4.75 oz
- MATING CONNECTOR: (MS3116E8-4S) & screws included
- CERTIFICATIONS: TSO-C4c, TSO-C113a, DO-160G, and DO178B Level C
- EASA SPECIFICATION CONFORMANCE: ETSO-C4c and ETSOC-113
3″ Mini6 Digital Multifunctional Indicator, 9-32 volt, TSO
$2,860.00
- Operating voltage: 9 to 32 VDC
- Circuit breaker: 1 Amp
- Current draw: 0.35 Amp max (14VDC), 0.20 Amp max (28VDC)
- Length: 2.3 in. max
- Width: 3.37 in. max
- Height: 3.37 in. max
- Weight: 8.3 oz. max
- Battery: Rechargeable LiPo (1.85 Wh)
- Max Indicated Airspeed: 300kts
- Vertical speed range: ± 9,000 feet/minute
- Altitude range: -5,000 - +33,000 feet
- TSO-C4C Bank and Pitch Instruments
- TSO-C113a Airborne Multipurpose Electronic Displays
- TSO-C3e Turn and Slip Instrument
- TSO-C6e Direction Instrument, Magnetic (Gyroscopically Stabilized)
- TSO-C2d Airspeed Instruments
- TSO-C10c Pressure Altimeter System
- TSO-C8e Vertical Velocity Instruments (Rate-of-Climb)
- Environmental Certification: (DO-160G)
- Software Certification: (DO-178B)
G5 Electronic Flight Instrument Kit with LPM for Certified Aircraft
$73.00
- Electrical: 14 or 28 VDC aircraft power
- Unit size: 3.4"W x 3.6"H x 3.0"D (86.4 x 91.4 x 76.2 mm)
- Weight: 13.3 oz (377.0 g), unit
- Display size: 3.5" diagonal (88.9 mm diagonal)
- Display resolution: 320 x 240 pixels (QVGA), LED backlit color LCD
- Receiver: High-sensitivity GPS
- Maximum indicated airspeed: 300 kts
- Altitude range: -1,400 – +30,000 feet
- Vertical speed range: ± 20,000 feet/minute
- Pitch/roll range: ±360°
- Backup battery: Rechargeable lithium-ion
- Battery life: Up to 4 hours

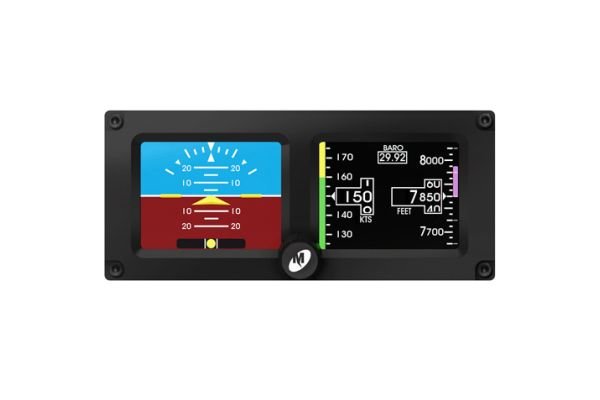

SAM – MD302 2-inch Standby Attitude Module
$8,052.00
- Power Input: 10-32 VDC; 6W nominal, 25W max
- Output: ARINC 429 (see manual for specific labels)
- Operating Range:
- Attitude: 300° per second pitch, roll and yaw (max)
- Altitude: -1,500 to +55,000 ft (-457 m to 16,764 m)
- Airspeed: 20 to 500 knots (23 to 575 mph) (37 to 926 kph)
- Vertical Trend: 6 second time frame
- Heading: Displayed via ARINC 429 input (external interface dependent)
- Units of Measure:
- Altitude: Feet or meters
- Barometric Setting: Inches of mercury, millibars
- Airspeed: Knots, miles per hour or kilometers per hour
- Panel Tilt: Configurable: -90° to +90° pitch
- Panel Roll: Configurable: -5° to +5° roll
- Lighting:
- 5, 14 or 28 VDC external input or internal photocell
- Programmable dimming curve
- Pilot Interface: 16-detent, push and turn knob
- Weight: 1.6 lbs (0.73 kg)
- Battery:
- Rechargeable, field-replaceable, internal battery
- Technology: Nanophosphate® lithium-ion
- Run time: 60 minutes minimum when fully charged and properly maintained
- Mounting: Front panel mounted
- Mating Connectors:
- Mid-Continent P/N 9017646 kit contains custom DB15 connector with configuration
- module, pitot and static connectors
- Certification:
- FAA TSO certified to C2d, C3e, C4c, C10b, C106, C113a, C179a
- ANAC TSO certified to C2d, C3e, C4c, C10b, C106, C113a, C179a
- EASA ETSO certified to C2d, C3d (incomplete), C4c, C10b, C106, C113, C179a
- RTCA DO-178B and DO-254 Design Assurance Level (DAL) A
- RTCA DO-160 and RTCA DO-311 qualified

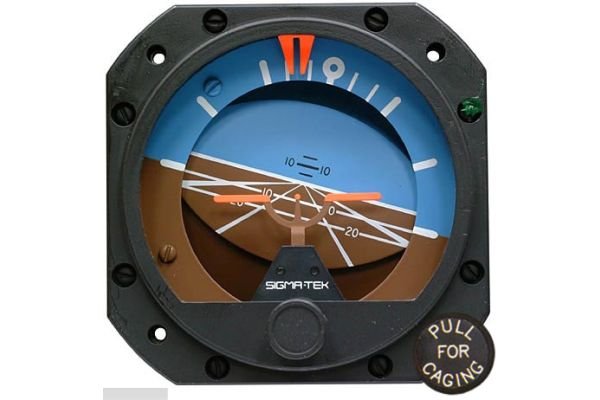

Vacuum Horizon Gyro, Caging Only, TSO
$2,196.00
