Vacuum Horizon Gyro, 8 degree panel tilt, TSO
$1,390.00
Description
Vacuum Horizon Gyro, 8 degree panel tilt, TSO
Sigma Tek Vacuum Horizon Gyro
The Sigma Tek air-operated artificial horizon gyro is selected as standard equipment by aircraft manufacturers worldwide. The artificial horizon displays aircraft attitude through 360 degrees in pitch. Its pictorial presentation gives faster interpretation of airplane attitude with blue for sky and brown for ground. Pictorial airplane remains fixed during gyro operation, adjustable to compensate for changing conditions.
- Panel size: Standard 3 1/8″ Dia. by 7 1/8″ Long.
- Vacuum Gyro Power: 4 to 5.2 in. Hg. Vac. or Pressure
- Also available with warning flag to alert pilot to loss of pneumatic power.
Related products

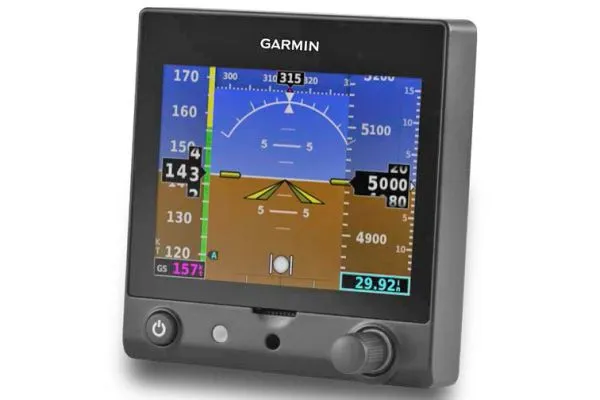

G5 Electronic Flight Instrument Kit with LPM for Certified Aircraft
$73.00
- Electrical: 14 or 28 VDC aircraft power
- Unit size: 3.4"W x 3.6"H x 3.0"D (86.4 x 91.4 x 76.2 mm)
- Weight: 13.3 oz (377.0 g), unit
- Display size: 3.5" diagonal (88.9 mm diagonal)
- Display resolution: 320 x 240 pixels (QVGA), LED backlit color LCD
- Receiver: High-sensitivity GPS
- Maximum indicated airspeed: 300 kts
- Altitude range: -1,400 – +30,000 feet
- Vertical speed range: ± 20,000 feet/minute
- Pitch/roll range: ±360°
- Backup battery: Rechargeable lithium-ion
- Battery life: Up to 4 hours
Unlit Electric Horizon Gyro 14 volt, TSO
$1,874.00
