SkyView Standard Autopilot Servo

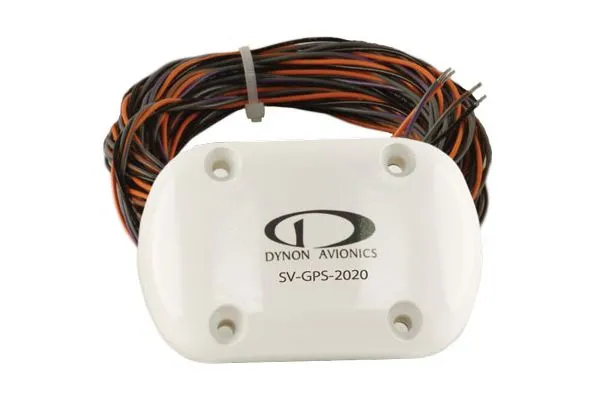

SkyView WAAS GPS Antenna/Receiver Module
- WAAS GPS Receiver Size: 2.19” W x 0.75” H x 3.44” D
- Weight: 7 oz
- Maximum Velocity: 400 knots
- Update Rate: 4 Hz
- Temperature: Storage -40 °C to +70 °C; Operating -30 °C to +60 °C
- Source Integrity Level (SIL): 3
- Interface: 115,200 baud RS-232 NMEA Output w/ integrity data
- Transponder Compatibility: SV-XPNDR-261
SkyView XPNDR-261 Mode-S Transponder
Stratus 3 ADS-B IN Receiver
Stratus Certified ESG Bundle, with 1090ES ADS-B Out TSO Transponder, 3i ADS-B In Rx & Universal ESG Harness
- Bezel: Height 1.69 in. (43 mm)
- Bezel: Width 6.38 in. (162 mm)
- Depth: 10.75 in. (273 mm) front of panel to connector backshell
- Weight: 3.29 lbs. (1.49 kg) including rack and connectors
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -55°C to 85°C
- Power Input: 9.0 to 36.0 VDC, 15 W typical
- Cooling Input: No fan required
- Environmental Compliance: DO-160G
- Software Compliance: DO-178B Level C
- Hardware Compliance: DO-254 Level C
- TSO Compliance: C112e (Level 2els, Class 1); C145d (Class Beta 1 GPS/WAAS); C166b (Class B1S)
- Display: OLED
- Transmitter Power: 310 W

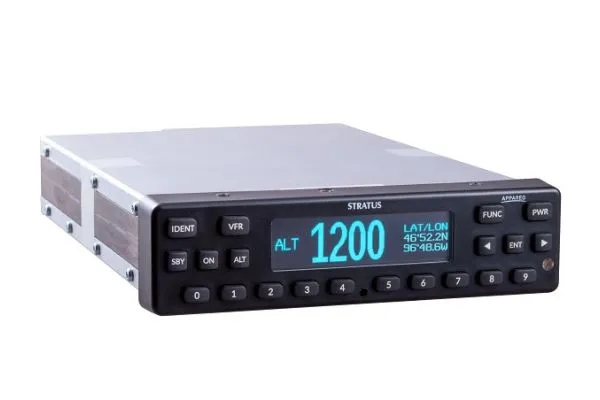

Stratus ES 1090ES ADS-B Out EXP Transponder, with Install Kit
- Bezel: Height 1.69 in. (43 mm)
- Bezel: Width 6.38 in. (162 mm)
- Depth: 10.75 in. (273 mm) front of panel to connector backshell
- Weight: 3.29 lbs. (1.49 kg) including rack and connectors
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -55°C to 85°C
- Power Input: 9.0 to 36.0 VDC, 15 W typical
- Cooling Input: No fan required
- Environmental Compliance: DO-160G
- Software Compliance: DO-178B Level C
- Hardware Compliance: DO-254 Level C
- TSO Compliance: C112e (Level 2els, Class 1); C145d (Class Beta 1 GPS/WAAS); C166b (Class B1S)
- Display: OLED
- Transmitter Power: 310 W
Stratus ESG 1090ES ADS-B Out EXP Transponder, with Install Kit & GPS Antenna
- Bezel: Height 1.69 in. (43 mm)
- Bezel: Width 6.38 in. (162 mm)
- Depth: 10.75 in. (273 mm) front of panel to connector backshell
- Weight: 3.29 lbs. (1.49 kg) including rack and connectors
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -55°C to 85°C
- Power Input: 9.0 to 36.0 VDC, 15 W typical
- Cooling Input: No fan required
- Environmental Compliance: DO-160G
- Software Compliance: DO-178B Level C
- Hardware Compliance: DO-254 Level C
- TSO Compliance: C112e (Level 2els, Class 1); C145d (Class Beta 1 GPS/WAAS); C166b (Class B1S)
- Display: OLED
- Transmitter Power: 310 W
