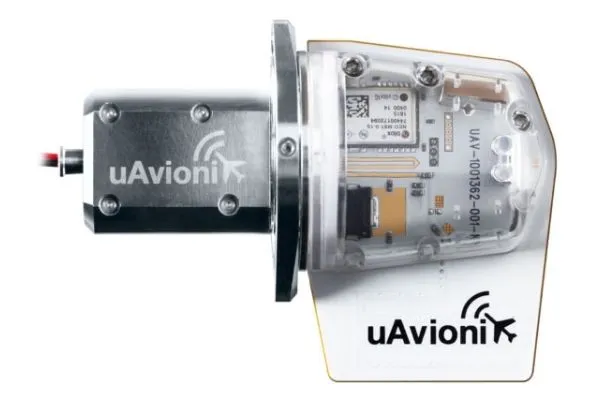

tailBeacon ADS-B Out LED Tail Position Light, TSO
$1,848.00
| Specification | Value |
| Input Voltage | 11-31V DC |
| Operating Power | 3 watts |
| Size | 92x43x73mm |
| Weight | 70 grams |
| SDA/SIL | 2/3 |
| Operating Temp | -45 to 70°C |
| 978MHz UAT Transmitter | |
| Power Classification | DO-282B Medium Power |
| WAAS GPS | |
| Tracking Reacquisition Cold Start | -166dBm -160dBm -148dBm |
| LED Position Light | |
| Color | Aviation White |
| Intensity | 40 candelas |
| Wi-Fi Configuration | |
| Physical | 802.11b/g/n |
| App Compatibility | iOS, Android |
| Power Transcoder | Decodes Mode A,C |
tailBeaconX ADS-B OUT Rear Position LED, TSO / STC Approved
$2,200.00
- Input Voltage: 11-31V DC
- Operating Power: 3 Watts
- Size: 113x105x48mm
- Weight: 140 grams
- SDA/SIL: 2/3
- Operating Temp: -45°C to 70°C
- 1090ES ADS-B Transmitter Power Classification: 250 Watts Nominal
- WAAS GPS
- Tracking: -166dBm
- Reacquisition: -160dBm
- Cold Start: -148dBm
- LED Position Light
- Color: Aviation White
- Intensity: 20 candelas
- Control Head
- Physical: RS232 or Power Line Modem
- Protocol: UCP
- Regulatory FCC ID: 2AFFTP200S

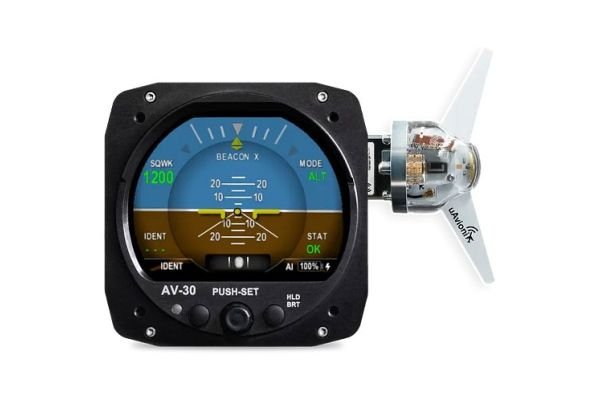

tailBeaconX ADS-B OUT TPX & AV-30-C EFIS Certified Bundle
$4,047.00
- Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
- Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
- Required Circuit Breaker: 2 Amp
- Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C
- Physical Attributes
- Mounting Configuration: 3 1/8” Round Instrument Hole
- Dimensions wo/Connector: 3.38 x 3.38 x 1.6 Inches
- Weight: 0.50 Lbs.
- Electrical Connector: 15 Pin Male D-Sub
- Pneumatic Connectors: ¼" OD Quick Connect
- Mounting: (4X) #6-32 Machine Screws
- Case Material: Billet Aluminum
- Environmental
- Operating Temp: -20°C to +55°C
- Storage Temp (48 Hrs): -30°C to +80°C
- Humidity (48 Hrs): 90% RH
- Display
- Diagonal Size: 3” Circular
- Contrast Ratio (Typical): 500
- Brightness (Typical): 1000 cd/m2
- Viewing Angle Left/Right: 60°
- Viewing Angle Up: 45°
- Viewing Angle Down: 10°
- Backlight Lifetime (Typical): 50,000 Hrs
The Eliminator EMI Noise Filter
$198.00
TRIG TMA45 Superior Audio Panel, 11-33 volt
$1,931.00
- Weight: 1.3 lb
- Dimensions: 6.2 x 1.3 x 7.7 in
- Audio Panel (Stereo): 2 to 6 seats
- Switched inputs: Nav 1, Nav 2, ADF, DME and TEL
- Unswitched inputs (audio warnings): 4
- Adjustable Illumination: photocell and/or via lighting bus
- Mic frequency response (3 dB): 300 Hz to 6 kHz
- Music frequency response (3 dB): 20 Hz to 20 kHz
- Headphone impedance: 150Ω to 1,000Ω
- Headphone output (each headset): 38 mW
- Speaker output: 3 watts @ 14 VDC, 10 watts @ 28 VDC
- Supply voltage: 11 to 33 VDC
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -40°C to 85°C
- TSO Compliance: TSO-C50c, TSO-C35d
TRIG TN70 WAAS GPS Receiver and Antenna
$2,141.00
| TN70 – WAAS GPS | TN70 GPS Antenna | |
| Type | GNSS/GPS/SBAS/WAAS | ARINC 743A WAAS GPS Antenna |
| Certification | TSO-C145c Beta 1 Receiver | TSO C190 |
| Compliance | DO-229D DO-178B level C DO-254 level C DO-160F | DO-301 DO-160 |
| Supply Voltage (DC) | 9-32 volts | |
| Typical Consumption @14V | Typical: 0.2A Max: 0.3A | |
| Weight | 1.06 lbs | 0.62 lbs |
| Dimension (HxWxL in.) | 1.6” x 4.13” x 6.5” | 0.73” x 3.0” x 4.7” |
TRIG TT21 Mode S & 1090ES ADS-B Out transponder, for Class 2
$2,177.00
| TT21 – Mode S for light aviation | TT22 – Mode S for high performance aircraft | |
| Type | Transponder Class 2 Mode S level 2els ADS-B Class B0 | Transponder Class 1 Mode S level 2els ADS-B Class B1S |
| Certification | ETSO C88A, C112C, C166A and TSO C88b, C112c, C166b, approved for IFR and VFR flight | |
| Compliance | ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181D | |
| Supply voltage (DC) | 9-33 V | |
| Typical Consumption (@14V) | idle: 0.15 A active: 0.28 A | idle: 0.15A active: 0.34 A |
| NominalTransmitterPower | 130 W at connector | 250 W at connector |
| Operating temperature | for the transponder -40°C to +70°C for the controller -25°C to +70°C | |
| CoolingRequirement | no fan required | |
| Weight | 440g | |
| Dimensions | controller: H 44 x W 63 x L 54 mm transponder in tray: H 48 x W 68 x L 160 mm | |
TRIG TT22 Mode S & 1090ES ADS-B Out transponder, for Class 1
$2,428.00
| TT21 – Mode S for light aviation | TT22 – Mode S for high performance aircraft | |
| Type | Transponder Class 2 Mode S level 2els ADS-B Class B0 | Transponder Class 1 Mode S level 2els ADS-B Class B1S |
| Certification | ETSO C88A, C112C, C166A and TSO C88b, C112c, C166b, approved for IFR and VFR flight | |
| Compliance | ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181D | |
| Supply voltage (DC) | 9-33 V | |
| Typical Consumption (@14V) | idle: 0.15 A active: 0.28 A | idle: 0.15A active: 0.34 A |
| NominalTransmitterPower | 130 W at connector | 250 W at connector |
| Operating temperature | for the transponder -40°C to +70°C for the controller -25°C to +70°C | |
| CoolingRequirement | no fan required | |
| Weight | 440g | |
| Dimensions | controller: H 44 x W 63 x L 54 mm transponder in tray: H 48 x W 68 x L 160 mm | |
TRIG TT31 Mode S & 1090ES ADS-B Out transponder, for Class 1
$2,614.00
- Type: Class 1 Mode S Level 2 els
- Certification: ETSO C166A, 2C112B and TSO C112, C166b
- Compliance: ED-73B, DO-160E, DO-178B Level B, DO181C, DO-260B Class B1S, DO-254 Level C
- Supply Voltage: (DC) 11 – 33 V
- Typical Current Consumption: (at 14V) Idle: 0.22 A, Active: 0.45 A
- Nominal Transmitter Power: 240 W at connector
- Operating Temperature: -20°C to + 70°C
- Cooling Requirement: No fan required
- Weight: 1.35 kg
- Dimensions: In tray – H 40 x W 160 x L 239 mm

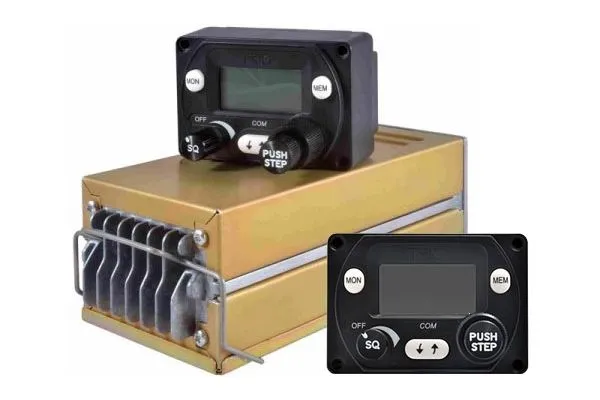

TRIG TY91 VHF Comm Radio, 6 Watt Power
$1,471.00
TRIG TY96A VHF Comm Radio, 10W, 760 Channel, 11-33 volt
$2,055.00
- Weight: 2.09 lb (0.95 kg)
- Dimensions: 1.3 x 6.26 x 10.63 in (33 x W 159 x L 270 mm)
- Installed depth in tray: 9.05 in
- Supply Voltage: 11 VDC — 33 VDC
- Typical Current Consumption: 175 mA @ 14 VDC
- Nominal Transmitter Power: 10 Watt, nominal
- Type: 25 kHz – 50 kHz certified 760 channel radio
- Operating Temperature: -20°C to 55°C
- Cooling requirement: No fan required
- Certification: ETSO 2C128, 2C169a, TSO-C128a TSO-C169a
- Compliance: ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C
